Main Processing Board 4-5
Chapter 4: Board Installation
MBX IP Hardware & Installation Guide

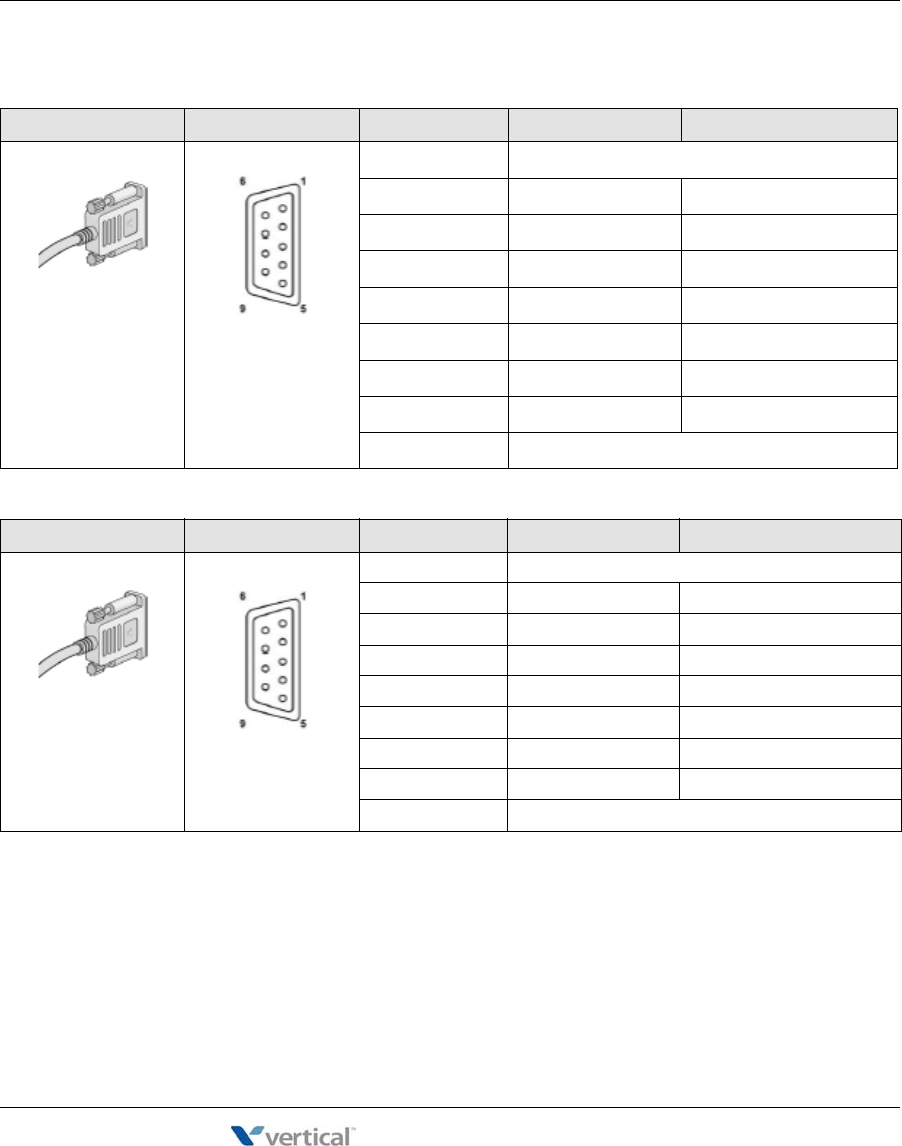

CN6, MPB
CN6, PC
CONNECTOR PIN NUMBER NO SIGNAL NAME FUNCTION
RS-232C
1
Reserved
2 TD Transmitted Data
3 RD Received Data
4 DSR Data Set Ready
5 SG Signal Ground
6 DTR Data Terminal Ready
7 CTS Clear to Send
8 RTS Request to Send
9 Reserved
CONNECTOR PIN NUMBER NO SIGNAL NAME FUNCTION
RS-232C 1 Reserved
2 RD Received Data
3 TD Transmitted Data
4 DTR Data Terminal Ready
5 SG Signal Ground
6 DSR Data Set Ready
7 RTS Request to Send
8 CTS Clear to Send
9 Reserved
Release 1.7
April 2012
